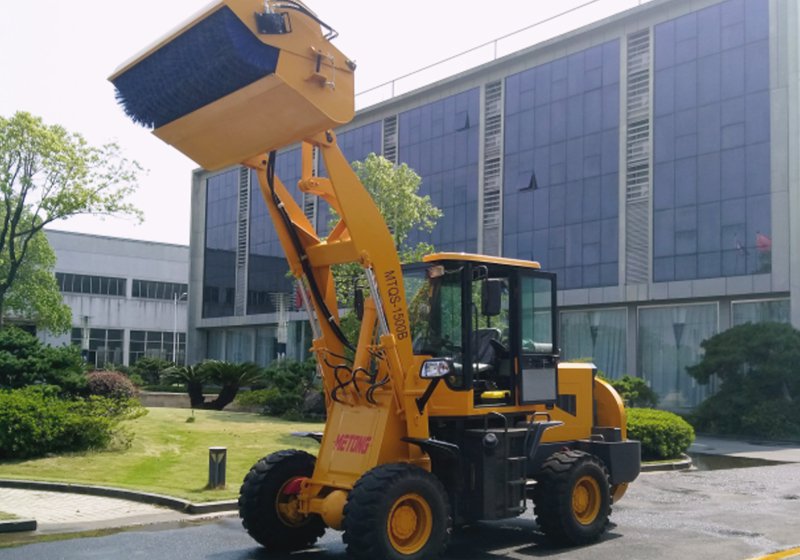

Pickup Broom Sweeper
The MTQS-1500B pickup broom sweeper is used in road construction to remove mud, stones, loose aggregate, and other hard debris left on the pavement surface between paving or maintenance steps. By keeping the working surface clean before the next process, the pickup broom sweeper helps support better construction quality.
The pickup broom sweeper features a front and rear drive system, hydraulic steering, and hydraulic braking for strong power, flexible maneuvering, and safer operation. Other working devices are hydraulically driven, making the pickup broom sweeper suitable for road construction, municipal pavement work, airport pavement projects, and other paved-surface construction applications.
Specifications
| Sweeping Width (mm) | 1850 |
| Brush Diameter (mm) | 600 |
| Brush Speed (rpm) | 220 |
| Wheelbase (mm) | 2185 |
| Engine Model | YN25GBZ |
| Rated Power / Speed (kW/rpm) | 55 / 2400 |
| Hopper Capacity (m³) | 0.2 |
| Hopper Payload (kg) | 200 |
| Min. Turning Radius (mm) | 4200 |
| Front/Rear Track (mm) | 1500 / 1500 |
| Driving Speed (km/h) | 0–20 |
| Operating Weight (kg) | 4230 |
| Overall Dimensions (L×W×H) (mm) | 6300×2180×2650 |
Main Components
- Engine system
- Transmission system
- Braking system
- Sweeping unit
- Steering system
- Hydraulic system
- Dust collection system
- Blower system
- Electrical system
- Main frame
Features
- Steel-wire broom
The broom roller is made with high-strength, wear-resistant steel wire. It removes pavement debris while lightly texturing the road surface, helping keep the construction surface clean and ready for the next process. - Collection hopper
Equipped with a collection hopper to collect removed debris during operation, helping keep the road surface clean and improve working efficiency. - Rear blower system
The rear blower removes dust and small loose stones from the pavement surface, helping create a cleaner working area. - Protective broom cover
A protective cover around the broom roller helps reduce dust dispersion and protects the operator from dust and flying debris. - Optional loader function
The pickup broom sweeper can be configured for light loading work, such as handling and stacking bulk materials. - Optional soft broom roller
The steel-wire broom roller can be replaced with a soft broom roller for cleaning loose stones and debris from finished pavement surfaces.
Since 2000, Metong has been designing and manufacturing equipment for road construction, preventive maintenance, and pavement repair. Our product range includes synchronous chip sealers, micro-surfacing and slurry seal trucks, asphalt distributors, binding agent spreaders, hot recycling pothole patchers, asphalt mixture insulation trucks, highway sweepers, and chip spreaders. We support customers with equipment selection, configuration, commissioning, operator training, and after-sales service.
