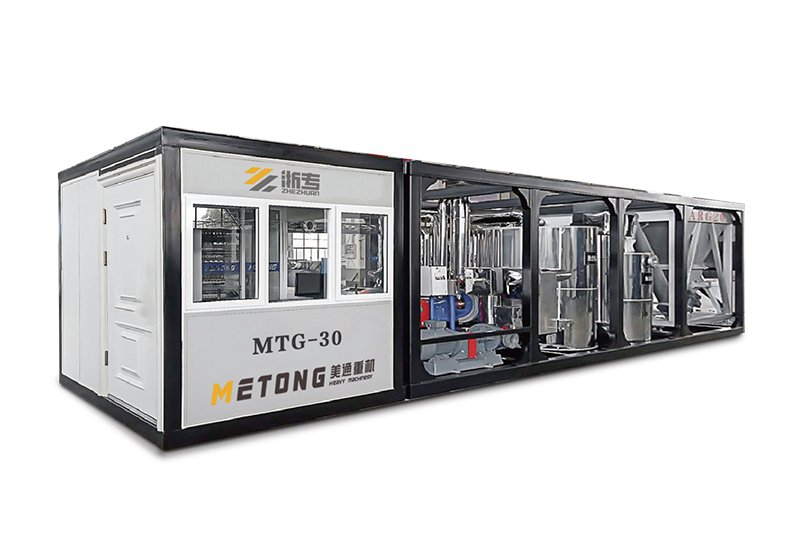

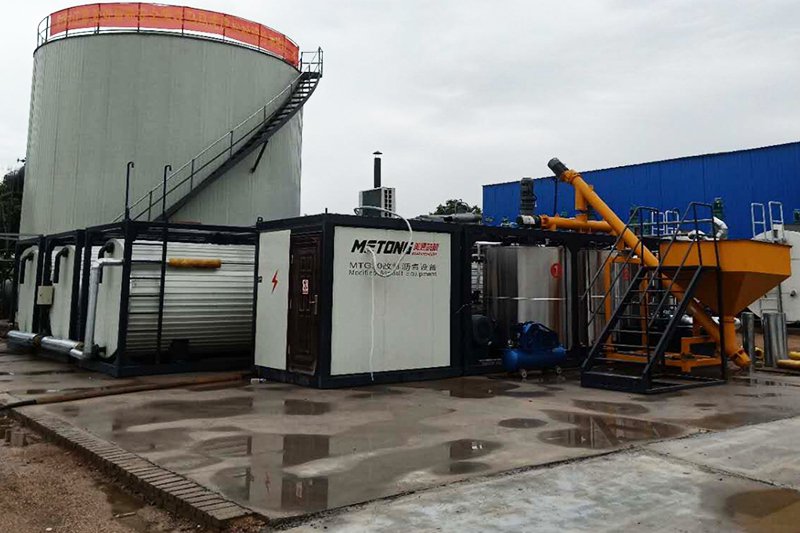

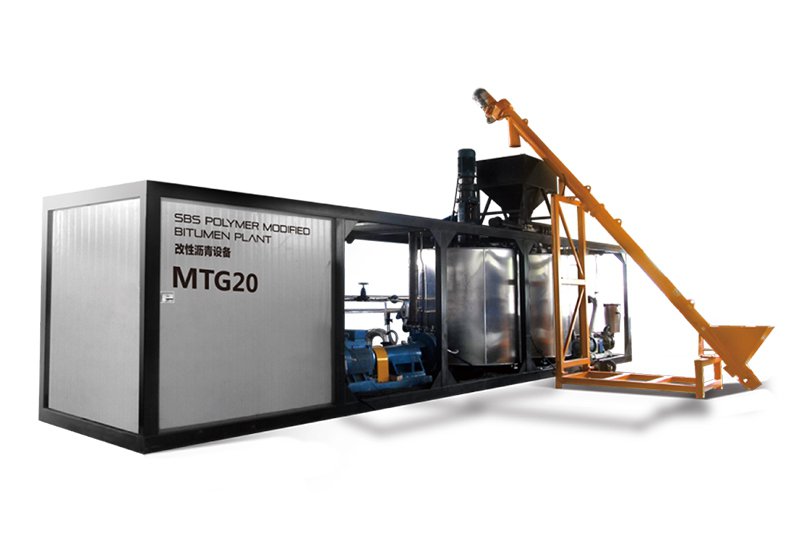

SBS Polymer Modified Bitumen Plant
The polymer modified bitumen plant is designed to produce polymer-modified bitumen for asphalt concrete mixtures used in highways, municipal roads, bridges, airport runways, and other pavement construction projects.
The PMB plant is suitable for producing SBS-modified bitumen, high-viscosity and high-elasticity modified bitumen, and crumb rubber modified bitumen. The production process combines shearing, grinding, and homogenization, completing the grinding process in one pass. By switching valves, operators can select either grinding or non-grinding processing modes according to the required modified bitumen production process.
Specifications
| Model | ||||
| General Parameters | Production Capacity (t/h) | 8–10 | 15–20 | 25–30 |
| Operating Voltage | 380 V / 50 Hz | |||
| Total Electrical Power (kW) | ≤71 | ≤103 | ≤146 | |
| Operation Mode | Manual / Automatic | |||
| Dimensions (L×W×H) (mm) | 9500×2250×2500 | 11300×2250×2500 | 11800×2500×2600 | |
| Operating Weight (t) | 8 | 15 | 17 | |
| Bitumen-to-SBS Ratio | 100:1–100:10 | |||
| Structural Type | Modular Structure | |||
| Metering Method | Bitumen | VFD + Flowmeter (Accuracy ±0.5%) | ||
| SBS | VFD Screw Feeder + Loss-in-Weight Scale (Accuracy ±0.5%) | |||
Project Cases

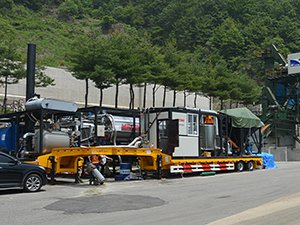

Project Site in Korea

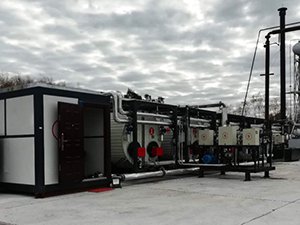

Project Site in Argentina

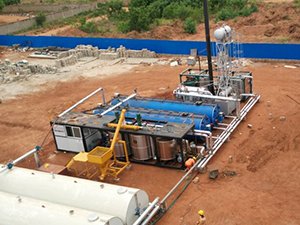

Project Site in Togo

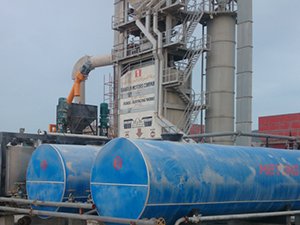

Project Site in Bahrain
Since 2000, Metong has specialized in the design and manufacture of road construction and maintenance equipment. Our product range includes synchronous chip sealers, micro-surfacing and slurry seal trucks, asphalt distributors, asphalt mixing plants, bitumen processing equipment, and highway sweepers. We provide equipment selection, customization, commissioning, operator training, and after-sales support for customers worldwide.
