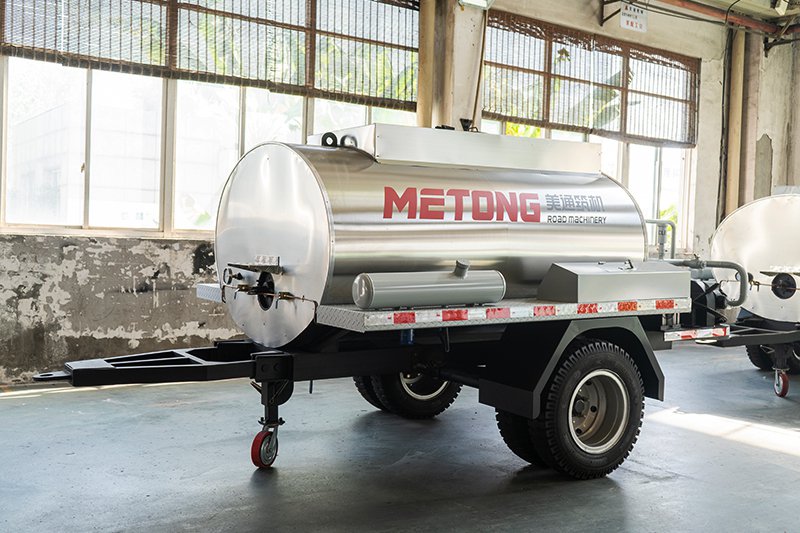

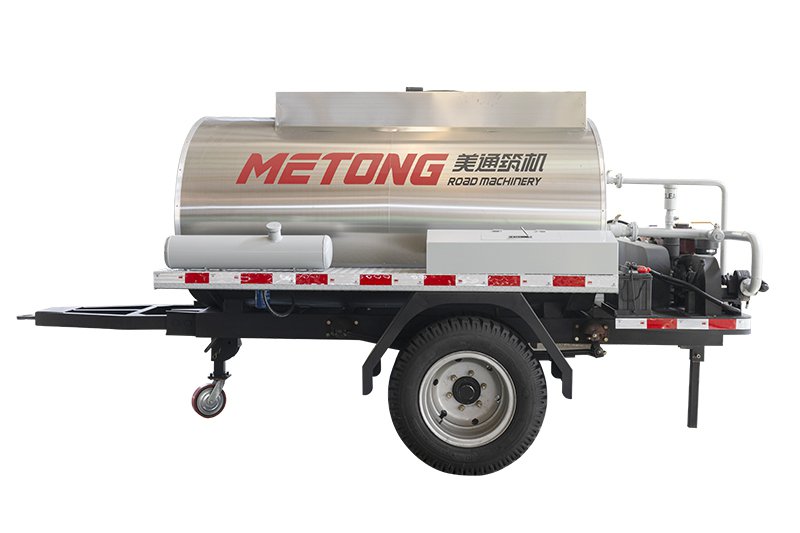

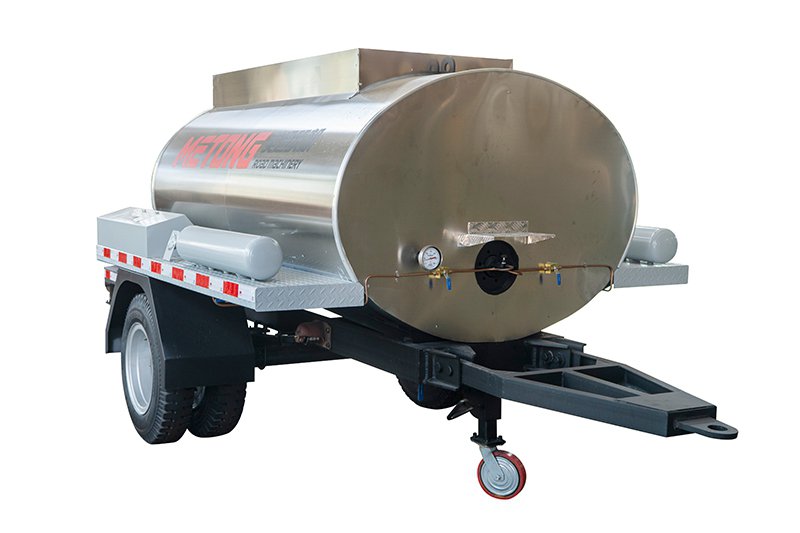

Asphalt Distributor Trailer
Metong asphalt distributor trailer s a lightweight, towable asphalt spraying unit designed for road maintenance, small-area repair, tack coat, and prime coat applications. The detachable structure allows the asphalt distributor trailer to be quickly coupled with or separated from a truck. When asphalt spraying is not required, the truck can be used independently for other transport tasks.
The asphalt distributor trailer is suitable for municipal streets, highways, neighborhood roads, bridge decks, ramps, pothole repair areas, shoulders, pavement edges, and other small or localized maintenance sites.

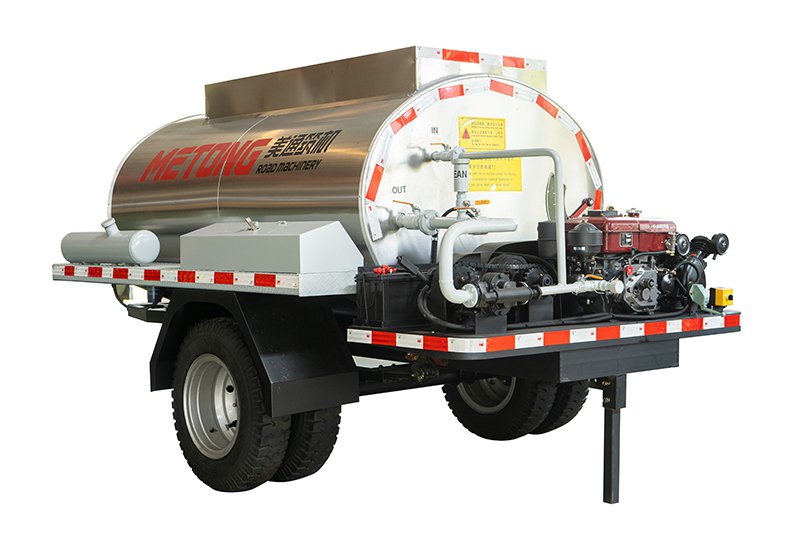

The asphalt distributor trailer consists of an asphalt tank, power system, transmission system, pipeline system, asphalt pump, and heating system. Its compact structure supports flexible deployment, simple operation, and convenient maintenance.
| Model | | |
| Overall Dimensions (L×W×H) (mm) | 3590×1750×1750 | 4320×2200×1900 |
| Burner Model | PQ5 | PQ5 |
| Burner Fuel Tank Capacity (L) | 13.5 | 13.5 |
| Bitumen Tank Capacity (L) | 1000 | 2000 |
| Max. Flow Rate (L/min) | 30 | 30 |
| Bitumen Pump Model | CLB50 | CLB50 |
| Bitumen Pump Displacement (mL/rev) | 50 | 50 |
| Max. Pump Working Pressure (MPa) | 1.3 | 1.3 |
| Air Compressor Model | V-0.08/8 | V-0.08/8 |
| Max. Air Pressure (MPa) | 0.6 | 0.6 |
| Diesel Engine Model | R180 (SF180) | R180 (SF180) |
| Rated Power / Speed (kW / rpm) | 5.67 / 2600 | 5.67 / 2600 |
- Detachable & towable structure
The asphalt distributor trailer can be quickly coupled with or detached from a truck. When spraying is not required, the truck can be used independently for other transport tasks, improving vehicle utilization. - Compatible with hot asphalt and asphalt emulsion
The asphalt distributor trailer can spray hot liquid asphalt and asphalt emulsion, making it suitable for different pavement maintenance processes. - Efficient insulated tank
The double-layer tank and 50 mm aluminum silicate insulation help maintain asphalt temperature and reduce the need for frequent reheating during routine maintenance work. - Independent heating system
The diesel burner heating system supports the 160–180°C temperature range required for hot asphalt application. - External asphalt pump
Equipped with a CLB50 gear pump for stable pumping pressure. The external layout makes inspection, maintenance, and replacement easier. - Dual cleaning modes
Diesel cleaning and high-pressure air purging help keep the pump and pipelines clear, reducing the risk of blockage between jobs and after operation. - Hand spray wand (hand spray gun) operation
The hand spray gun allows controlled asphalt application for pothole repair, pavement edges, bridge decks, ramps, corners, and other small-area work.
