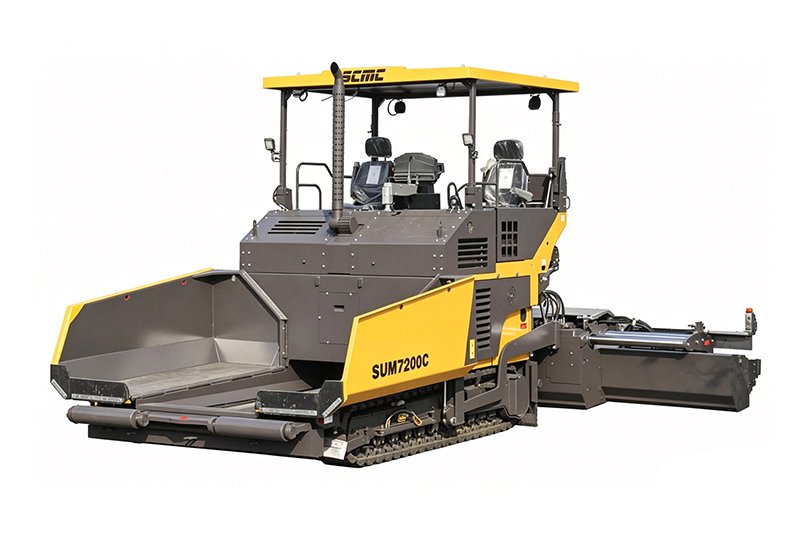

Asphalt Paver
The asphalt paver is a road construction machine used for placing asphalt mixture on highway base courses and surface courses. The asphalt paver spreads asphalt mixture evenly across the base layer, then performs initial vibration, pre-compaction, and leveling to support a smooth pavement surface.
The asphalt paver completes the paving process through the coordinated operation of multiple systems, including the travel system, hydraulic system, material conveying system, auger distribution system, and other working units.
Specifications
| Engine Rated Power / Speed (kW/rpm) | 153 / 1800 |
| Fuel Tank Capacity (L) | 290 |
| Basic Paving Width (m) | 2.55–5.0 |
| Max. Paving Width (m) | 8.0 |
| Max. Paving Thickness (mm) | 300 |
| Paving Speed (m/min) | 0–18 |
| Hopper Capacity (t) | 15 |
| Feeding Speed (m/min) | 0–25 |
| Max. Theoretical Productivity (t/h) | 900 |
| Overall Dimensions (L×W×H) (mm) | 6745×2550×3645 (Transport Height: 2975) |
| Main Machine Weight (without basic screed) (kg) | 15800 |
Features
- Stable paving under heavy load
The asphalt paver is powered by a 153 kW engine with high torque output, helping maintain stable paving speed under heavy-duty working conditions. - Uniform material distribution
The reversible scraper conveyor and auger distribution system help spread asphalt mixture evenly, reducing material segregation and preventing aggregate buildup or separation. - Reliable hydraulic operation
Full hydraulic control, centralized lubrication, and hydraulic lifting help reduce operational faults and support reliable long-term paving work.
Metong manufactures highway sweepers and supporting road equipment for cleaning, maintenance, and pavement construction applications. The range includes dry type road sweepers, dry and wet sweepers, mechanical highway sweepers, swirling-flow high-speed sweepers, road line marking equipment, and paving machines. Equipment configurations can be reviewed according to road conditions, cleaning requirements, operating speed, local regulations, and project objectives.
