Tire Roller

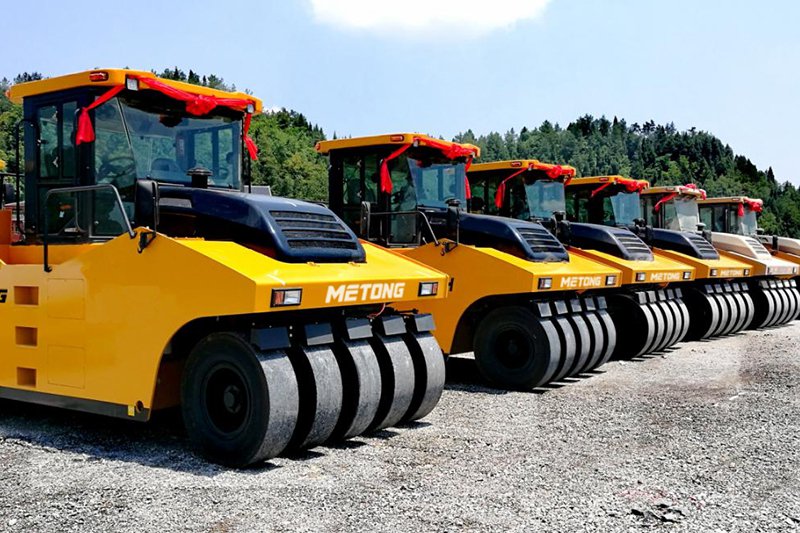

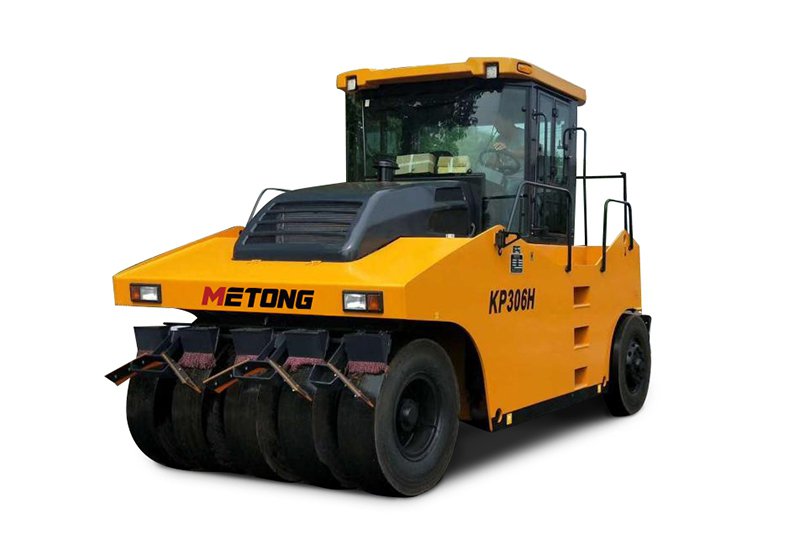

The KP306H-2 pneumatic tire roller is a 30-ton heavy-duty compactor designed for finish rolling of asphalt surface courses, subgrade reinforcement, and base layer compaction. It is suitable for highways, major municipal roads, airport runways, and other pavement construction projects.
The pneumatic tire roller uses smooth pneumatic tires, imported full hydraulic drive, adjustable ballast, and adjustable tire pressure. This configuration helps deliver uniform compaction, improve surface sealing, reduce cracking risk, and support better pavement smoothness.
Specifications
| Operating Weight (kg) | 30000 |
| Ground Contact Pressure (kPa) | 250–460 |
| Compaction Width (mm) | 2750 |
| Travel Speed (Gear I / II) (km/h) | 0–7 / 0–14 |
| Max. Gradeability (%) | 20 |
| Min. Turning Radius (mm) | 9000 |
| Front Wheel Oscillation (mm) | ±45 |
| Tire Overlap (mm) | 50 |
| Min. Ground Clearance (mm) | 290 (Frame Arch: 370) |
| Engine Model | Weichai WP6 |
| Rated Power (kW) | 140 |
| Tire Specifications | 11.00-20 |
| Number of Tires (Front / Rear) | 5 / 6 |
| Overall Dimensions (L×W×H) (mm) | 5200×2870×3380 |
Features
- Stepless speed control and automatic shifting
The pneumatic tire roller maintains consistent forward and reverse speeds, with smooth direction changes and no power interruption during reversing. This helps improve asphalt pavement smoothness during compaction. - Two travel speed ranges
The pneumatic tire roller offers two speed ranges to match different working conditions, including travel and compaction operation. - HD camera
The high-definition camera provides a clear view of the surrounding area, helping improve jobsite operating safety.
