Four-Track Slipform Paver

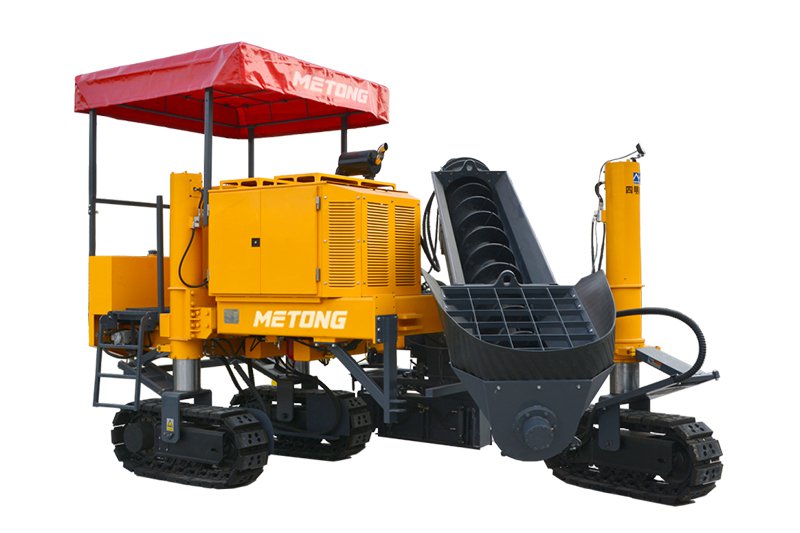

The SMC-6500 four-track slipform paver is a multifunctional concrete paving machine introduced by Metong, designed for concrete pavement and structure construction. It uses a modular design, fully hydraulic drive, a four-track travel system, and an intelligent electronic control system.
The four-track slipform paver supports side-mounted, center-mounted, and rear-mounted paving modes, allowing it to adapt to different concrete construction scenarios. With strong power, stable operation, and flexible application capability, the four-track slipform paver is suitable for highways, municipal engineering projects, rural roads, and other concrete paving applications.
Specifications
| Model | SMC-6500 |
| Engine Model | SDEC SC7H180G3 |
| Number of Cylinders | 6 |
| Combined Fuel Consumption (L/h) | 18.8 |
| Full-Load Fuel Consumption (L/h) | 30.3 |
| Max. Paving Width (mm) | Center-mounted: 5000 / Rear-mounted: 4500 |
| Max. Paving Thickness (mm) | 300 |
| Max. Paving Height (mm) | 1500 |
| Max. Working Capacity (m³/h) | 120 |
| Vibration Frequency (Hz) | 0–167 |
| Standard Vibration Circuits | 12 (Expandable to 14) |
| Machine Weight (t) | Side-mounted: 19.5 / Center-mounted: 20 / Rear-mounted: 16 |
| Transport Width (mm) | 2700–3000 |
| Min. Paving Radius (mm) | 600 (Side-mounted mold) |
Features
- CAN-BUS and modular control design
The four-track slipform paver uses a CAN-BUS control system and modular design to improve system stability and reduce the risk of faults. - ECO energy-saving mode
ECO mode automatically matches machine operation to working conditions, helping reduce energy consumption during concrete paving. - Stable column lifting control
The column lifting system is driven by proportional valves, allowing the lifting cylinders to respond quickly and move smoothly for better leveling control and paving quality.
